Compact power, heavy-duty precision for South East Asia

As South East Asian manufacturers continue to scale up production while facing constraints in floor space, skilled labour availability, and rising quality expectations, machine tools that combine structural rigidity, flexibility, and digital intelligence are becoming increasingly critical.

This is where EMCO Mecof positions its latest Powermill gantry milling platforms—including the Powermill G3 PC3 and Powermill G3 / HPC3—as strategic production assets for industries across automotive, EV components, general engineering, energy, and heavy equipment manufacturing in Southeast Asia.

PowerMill G3 HPC3

Designed for Large Parts—Without Demanding Large Footprints

Originally developed for European and Asian customers operating in space-constrained production environments, the Powermill G3 PC3 demonstrates that compact installation does not have to come at the expense of performance.

With axis travels of X 8,000 mm, Y 4,500 mm, and Z 1,500 mm, and a DIN 876 Class II worktable measuring 8,000 × 3,000 mm with a load capacity of 15,000 kg/m², the machine is engineered for stable machining of large and heavy components—such as frames, structural parts, molds, and tooling plates.

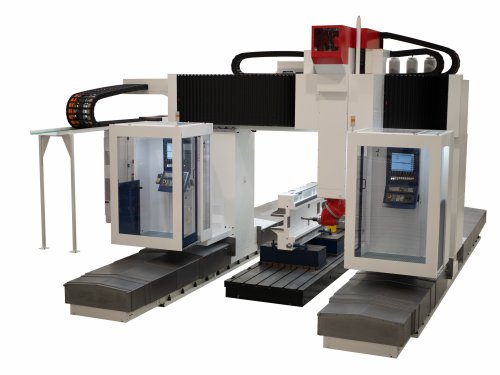

Powermill G3 PC3

For Southeast Asian job shops and Tier-1 suppliers that frequently handle high-mix, low-to-medium volume production, this balance of footprint efficiency and working envelope is particularly relevant, especially in industrial zones where factory expansion is costly or limited.

One Platform, Multiple Applications

At the core of the Powermill G3 PC3 is a universal bi-rotary milling head with automatic millesimal positioning, delivering 38 kW of power, 615 Nm of torque, and spindle speeds up to 6,000 rpm via an ISO 50 interface. This configuration allows manufacturers to perform heavy roughing, semi-finishing, and precision 5-axis contouring on a single machine.

For Southeast Asian manufacturers serving automotive structures, EV battery housings, large aluminum components, and welded assemblies, this versatility reduces the need for multiple specialised machines—cutting both capital investment and internal logistics.

Tool handling and cycle efficiency are further enhanced by a 60-position chain tool changer, mounted on the machine shoulder and combined with a sliding exchange arm. This layout enables fast, reliable tool changes while keeping the spindle in a horizontal position—minimising idle time during complex machining cycles.

Scaling Up: Powermill G3 / HPC3 for Heavy Industry and Infrastructure Components

For applications requiring even greater capacity, EMCO Mecof’s Powermill G3 / HPC3 extends gantry machining into the realm of extra-large, high-load production.

Depending on configuration, the platform offers axis travels of up to 18,000 mm in X, 4,500 mm in Y, and 2,500 mm in Z, supported by a box-in-box gantry structure designed for exceptional rigidity, thermal stability, and dynamic performance.

This makes the system suitable for energy infrastructure components, cable manufacturing equipment, large fixtures, press molds, and transport industry structures—segments that are growing steadily across Indonesia, Vietnam, Thailand, and Malaysia due to infrastructure investment and industrial localisation.

A key advantage lies in the modular automatic head-changing system, which allows manufacturers to switch between:

•A high-power universal bi-rotary head (up to 38 kW and 1,000 Nm) for complex surfaces and heavy cutting

•A compact vertical spindle head for precision multi-face machining

•Lightweight heads for fine finishing and auxiliary operations

This modularity supports process consolidation, enabling multiple operations to be completed in a single setup—an important productivity lever in regions facing skilled operator shortages.

Built-In Intelligence for Industry 4.0 Manufacturing

Both Powermill platforms integrate advanced CNC and digitalisation features aligned with Industry 4.0 initiatives, increasingly adopted by Southeast Asian manufacturers supplying global OEMs.

Available configurations include Heidenhain TNC 640 HSCI or Siemens Sinumerik ONE, complemented by digital connectivity options such as:

•Remote program loading and monitoring

•DNC integration with factory logistics and MES systems

•Adaptive machining control for optimised cycle times and tool life

For manufacturers supplying international automotive or electronics customers, these capabilities support process traceability, quality consistency, and compliance with global production standards.

Cooling, Chip Management, and Reliability in Tropical Conditions

Heavy machining in Southeast Asia’s climate places additional demands on cooling and thermal stability. EMCO Mecof addresses this with dual cooling systems—external spindle cooling combined with high-pressure through-spindle coolant (up to 40 bar)—supported by large-capacity filtration tanks (1,000 to 2,000 litres depending on configuration).

Efficient chip evacuation via dual or ramp-type conveyors ensures stable long-run operation, even during aggressive roughing cycles—particularly relevant for steel and cast-iron machining in automotive and industrial equipment production.

Ergonomics, Measurement, and Process Assurance

Integrated Renishaw wireless probing, kinematic measurement systems, and tool length and diameter control support first-part accuracy and reduced setup time. Wireless operator panels further improve ergonomics and safety, allowing operators to move freely during setup and monitoring.

A Strategic Investment for Southeast Asian Manufacturers

Rather than positioning the Powermill series as a single-purpose machine, EMCO Mecof presents it as a scalable production platform—one that aligns well with Southeast Asia’s evolving manufacturing landscape, where flexibility, localisation, and productivity must coexist.

For manufacturers looking to:

•Consolidate machining operations

•Handle larger and more complex parts

•Improve productivity without expanding factory space

•Integrate digital manufacturing workflows

The Powermill G3 PC3 and G3 / HPC3 represent a long-term, future-ready investment—combining Italian mechanical engineering tradition with modern automation and connectivity.
