New micro line of compressed air dryers

Dri-Air Industries, Inc. introduces a new product series in their extensive dryer line for the plastics industry. Known throughout the industry for their desiccant dryers, Dri-Air is now manufacturing a micro line of compressed air dryers with matching hoppers.

The MicroDryer Series (MD) is a line of sleek, compressed air dryers designed for very low throughputs. The series of dryers start with the MD-1 equipped with drying hoppers with a capacity of 1-3 lbs and range up to the MD-3 with the largest capacity of 15 lbs. Low dewpoints, -40F and below, are assured as the dryer is equipped with a membrane and compressed air prefilter.

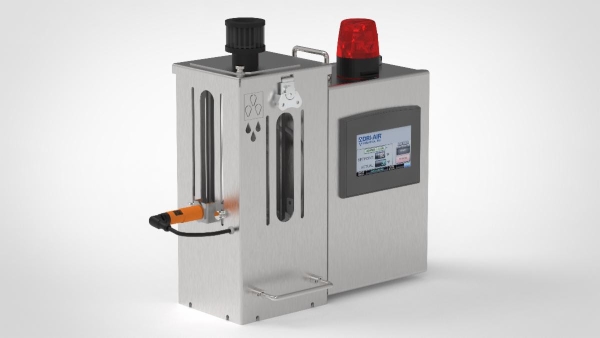

The MD-1 is the first of the new Dri-Air dryers to be unveiled at NPE 2024. Built as a matched dryer/hopper combination, the fully stainless-steel construction and glass hopper is ideal for medical molding with low throughputs and/or high-cost resins. An optional adjustable fill sensor can be used with the standard full-length sight glass to vary the capacity of the hopper from 1 lb to 3 lbs.

The dryer is available to operate on 120-volt or 230-volt single phase power and a 100 psi clean compressed air supply. For ease of use, the 4” color touch screen will easily guide the operator for temperature and alarm settings and a 7-day timer for automatic start/stops.

The MD-1 is also available with options to make the system even more flexible and user-friendly:

• -40 F dewpoint meter

• Adjustable fill sensor

• Integrated compressed air loader for loading drying hopper

• Feed throat adapter

• Remote Dryer capabilities
