Accurately weigh fragile products

Ishida Europe’s 10 and 14 head multihead weighers are designed to deliver fast and accurate weighing of fragile products such as biscuits, wafers and frozen items. Such products are usually challenging on automated weighing systems, but the design of the new Ishida CCW-RV 10 and 14 heads GS weighers incorporates gentle slopes and reduced angles throughout the weigher to ease the passage of the products. Bancollan inserts for the hoppers and discharge chute provide effective cushioning, while unique curved pool and weigh hopper designs deliver controlled deceleration further minimising the potential for breakages.

In addition, a ring shutter helps prevent breakages due to product collisions in the discharge chute during transfer of product into the packaging machine.

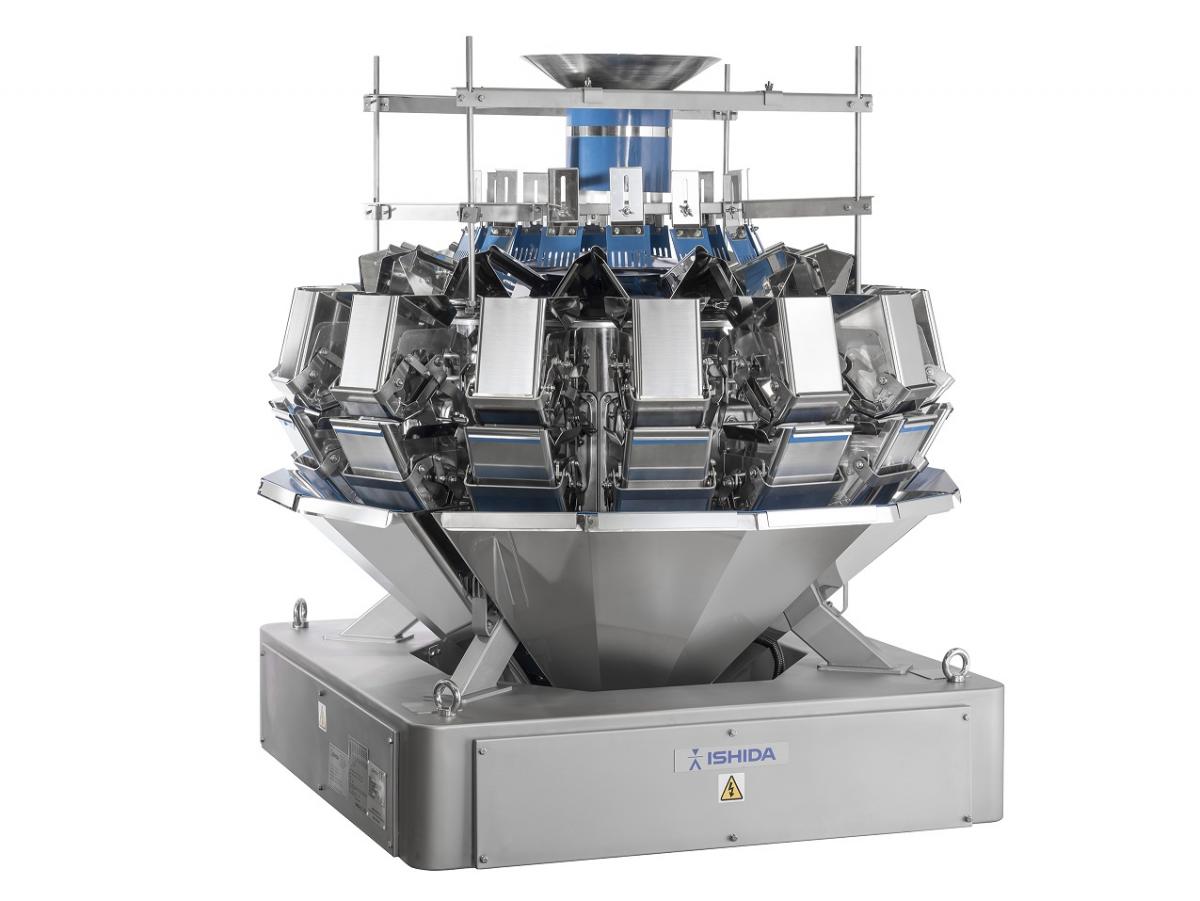

CCW-RV 10 and 14 head GS weigher

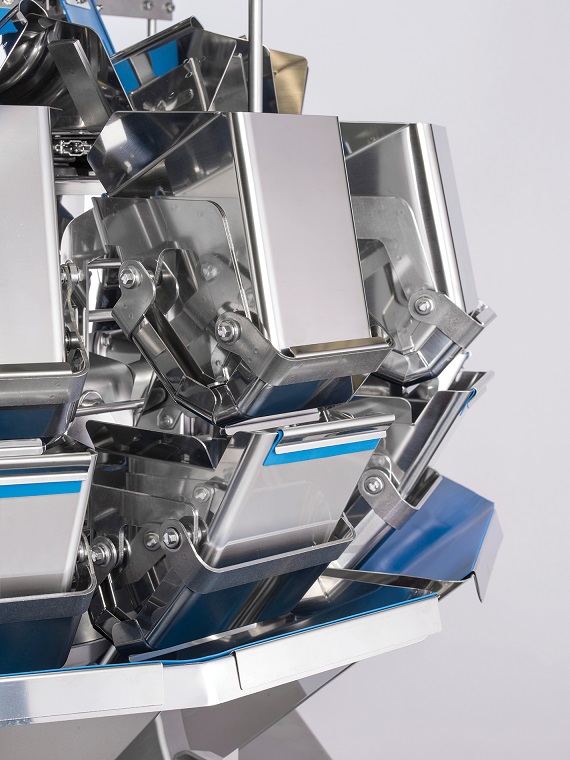

CCW-RV 10 and 14 head GS weigher: A close up of the hopper

For fragile frozen products such as pasta, seafood, fruits, vegetables and bakery items, the GS model can be specified in a WP waterproof version which provides industry leading protection for the weigher in more challenging factory environments.  The IP69K test rating means that the weigher offers the highest levels of water and dust resistance, making it perfectly suited to applications where equipment has to be thoroughly sanitised.

The CCW-RV 10 & 14 heads GS offer all the proven benefits of the Ishida RV range with its reputation for unsurpassed accuracy and efficiency.

All heads are capable of being used in a single combination calculation, and the unique triple combination calculation software can calculate three optimal weight combinations, double checks them and then select the one nearest to the target weight, all in a single cycle.  This minimises error discharges and increases efficiency, while also enhancing weighing accuracy and consistency.  Anti-floor vibration removes background vibration from the load cell output signal, improving signal stability and machine accuracy.

Speeds of up to 65 per minute for the 10 head and 90 packs per minute for the 14 head model can be achieved, depending on product characteristics and required target weight.
