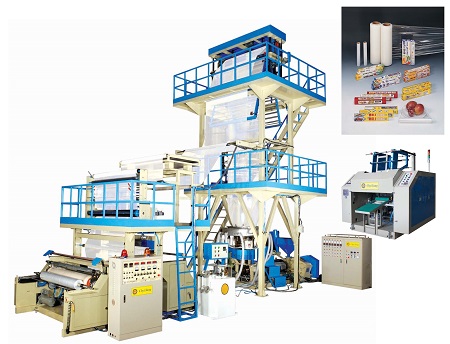

Chyi Yang's PE stretch film blown machine

Chyi Yang Industrial Co., Ltd.'s PE Stretch Film Blown Film Machine is for producing PE stretch film & PE cling film. The unit uses liquid PIB injection system to inject the liquid adhesive into the screw to get the sticky film. This technology allows the adjustment of the stickiness and saves resin cost. The winder is equipped with no-tension control which allows the film to be the same tension and won’t tighten the paper cores. The co-speed controller controls the speed of take-up unit and winder to be the same, so the film won’t be stretched and can keep the stretch after winding.

This machine can produce 10 rolls of film width 300mm or 6 rolls of film width 500mm at one time, and the output can be 100-150kgs/hr. for 1-layer 75mm extruder. For industrial purpose, Chyi Yang offers multi-layers stretch film blown film machine also. The company also has three rewinder machines: one is for fixed film width 300mm, one is for fixed film width 500mm, one is for film width 300-530mm. These three machines can automatically feed the paper core, rewind, cut film and change paper core. The maximum speed of the newest “Rewinder machine” can be 18-20pcs/min. at 20m length. Several patents have been obtained for these machines.

For more information, visit: www.chyiyang.com/
