Double spindle turn-mill center

Source：International Metalworking News Release Date：2016-04-27 231

Metalworking

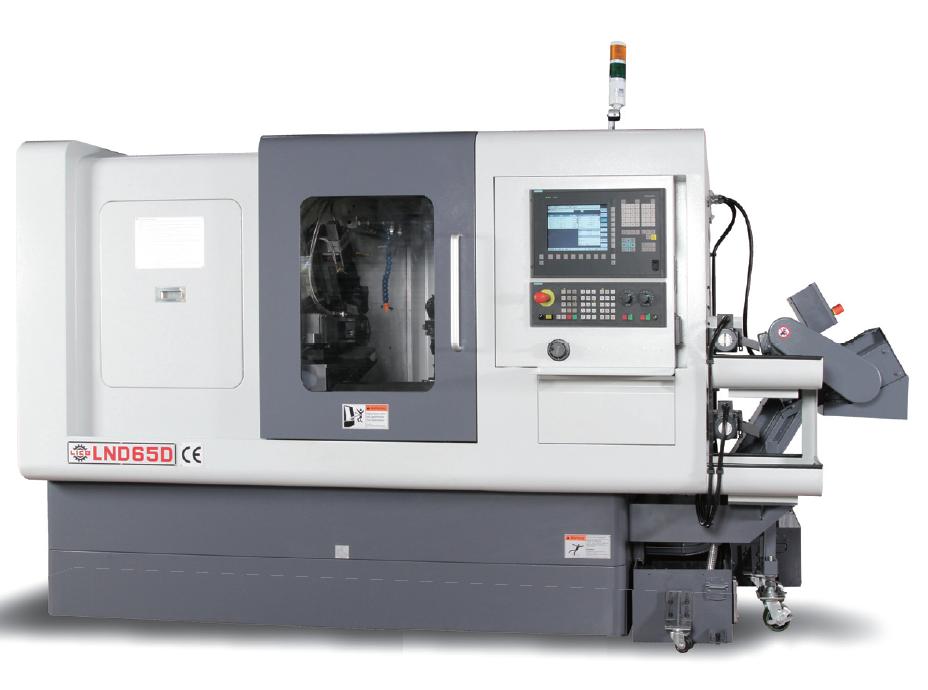

The LND65D-S3-S8LTBY-CS is a super performance CNC turning center suitable for mass production of complicate turn-mill parts and long shafts.

The machine consists of an 8-position all power tools turret on Y-axis slide. The VDI-30 live tools is good for turning and milling for both ends machining on main spindle and counter spindle.

It has up to three sets of X-Z- compound slides available for mounting around the main spindle. It allows 3-4 tools working simultaneously, a powerful CNC turn-mill center. This LND65D is installed with multi-axis Siemens-840D CNC systems, while Fanuc-31i is available upon request.

The bar capacity is 65mm dia. max. Models for 42 mm dia. max., 80 mm dia. max., and 100 dia. max are available. Models for live tools turret without Y-axis slide, -S8LTB-CS and models for non-live tools turret for less cost, S8STB-CS are available.

LICO Machinery Co. Ltd

Tel: +886-4 2563 0950

Fax: +886-4 2563 0951

E-mail: sales@licomachinery.com

Website: www.licocnc.com
