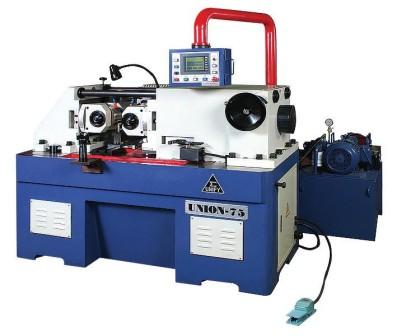

Hydraulic thread rolling machine

The UM-75 is set up with PLC program and the HMI system.  It’s convenient to modify the thread rolling method by PLC program, and easier for the operation.

The features of hydraulic thru feed type thread rolling machine includes: Thru feed and in-feed (plunge feed) both available: The rolling time and the rolling length can be adjusted by the sensors. Powerful rolling pressure: The slide way feeding is driven by hydraulic unit, precision in positioning. Solid structure: the machine base is made by high tension cast iron FC-25 frame and heat treated. Steady feed motion: Ground square slide way can avoid the jumping, vibration and wear away. Perfect transmission: The ground-thread worms with heat treatment progress can be matched completely and smoothly with phosphoric bronze worm gears. Especially suitable for: long length screws, ACME screws, ball screws, machine parts, tool and automobile/motorcycle parts.

KIM UNION

No. 118, Fengli Rd., Tantzu, Taichung, Taiwan 427

Tel: +886-4 2533 1131

Fax: +886-4 2532 7805

E-mail: kimunion@kimunion.com

Contact: Jessie Yu, Sales Manager

Website: www.kimunion.com
