Lightweight eye-link belts

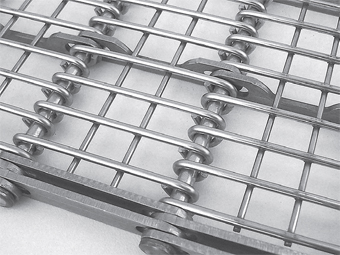

EUROPEAN processors have long favoured eye-link belting, which has an extensive history of production by Ashworth at their facility in the Netherlands, for their cleanliness, durability and utility. These belts are lightweight, positively driven, straight running conveyor belts that feature an inherently strong design that naturally tracks straight. Eye-links make up the flat, even surface for smooth product conveyance, and the overall construction provides a rigid structure that resists side-to-side deflection whilst enabling the belt to handle thousands of pounds of tension. The belts are positively driven by sprockets, a chain edge or rollers, which use grooved rollers to positively engage the belt across its entire width to increase tension capabilities and drastically increase the life of the belt. Suited for a wide range of applications, Ashworth eye-link belts are available in numerous configurations of pitch spacing, wire diameter, and mesh designs that range from being very open for maximum cleanability to very tight for small product conveyance. Additionally, numerous options are available such as cross flights, side plates, chain edges, and additional bar links for increased strength. Ashworth Bros., Inc. T: +1 866 204 1414 F: +1 507 645 5678 Email: service@ashworth.com Web: www.ashworth.com FME229Zoom Kobe X ZK10
