New blown film surface winder for large roll diameters

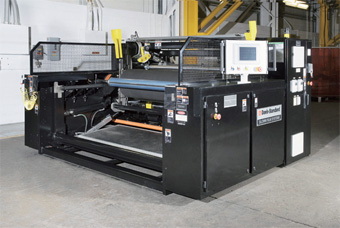

Davis-Standard, LLC has introduced a new series of surface winders for blown film processors to complement the successful PAC series. The new SLC (SLiding Carriage) Series employs pneumatics instead of hydraulics for controlling the winding force. Like the PAC series, the SLC Series is capable of wound roll diameters up to 60 inches (1,500mm). The winder is available in widths from 44 to 134 inches (1,118 to 3,400mm) and capable of winding rolls on 3-inch (75mm) or 6-inch (150mm) cores. This AC-driven winder has several unique engineering features for improved performance. The weight of the roll is supported by bearings located close to the wound roll edge and supported on a horizontal linear rail for greater shaft performance. The winding force is controlled via pneumatic cylinders with control feedback and taper capabilities. The finished roll unloading system is independent from the winding transfer cycle sequence shortening and streamlining new roll changes. Roll carts and shaft handling are available to add automation to fit each plant's needs. Davis-Standard, LLC Tel: +860-599 1010 Fax: +860-599 6258 E-mail: kellerr@bc-egan.com Website: www.davis-standard.com
