Reifenhauser Ultra Flat technology demonstrated at Open House

Reifenhäuser Blown Film hosted an Open House in Troisdorf during the DRUPA trade show held in Düsseldorf. The Open House was attended by customers from around the world who are eager to discover new opportunities in the application of film extrusion technologies.

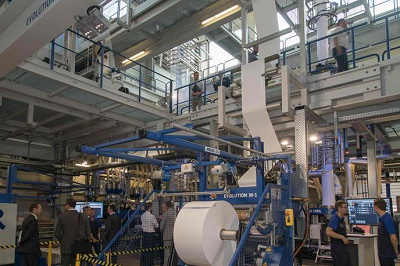

What made the Reifenhäuser Open House event so appealing were the lines in operation: Three state-of-the-art blown film lines could be viewed running in production. A special highlight was the EVOLUTION Ultra Flat technology which has become a convincing selling point.

Eugen Friedel, Senior Sales Manager at Reifenhäuser Blown Film said that: "Film flatness imperfections occurring in the production of packaging films are inherent in blown film processes. Especially in the conversion of these films they can cause serious problems. With EVOLUTION Ultra Flat featuring minimum stretching of the film via heating-cooling rolls it is possible to produce a web perfectly flat for subsequent winding and conversion." The enhanced efficiency covers the entire value chain. All steps in the production of packaging film, such as lamination, printing, re-forming and sealing, clearly benefit from the optimized web flatness.

Besides the Ultra Flat technology further highlights were presented by Reifenhäuser Blown Film on their running blown film lines. One highlight was the 11-layer blown film line producing an outer layer from polyamide where an asymmetric high-barrier structure was so skillfully chosen that the curling effect of the film was prevented without using a water bath (critical for hygienic production conditions). Curling of the film edges is caused by the different speeds at which raw materials cool down and by the individual crystallization points (for example PE vs. PA, PET). That impedes a smooth conversion of the film. Excellent film properties needed for conversion, lamination and printing were also ensured by the EVOLUTION Ultra Flat haul-off used on this line. Thanks to minimized stretching via heating-cooling rolls, a web of perfect flatness was achieved with this technology.

Also demonstrated was the 3-layer line producing FFS bags (Form, Fill & Seal) from an LLD-PE rich based material structure regarded as difficult. Operated with a 175mm die, the line easily achieved a consistent record-breaking output of 450kg per hour. Another highlight was the 5-layer line designed for high output producing high-efficiency lamination film - over 800kg/h were achieved using a 325mm die. Here as well, the advantages of the EVOLUTION Ultra Flat technology were demonstrated.
