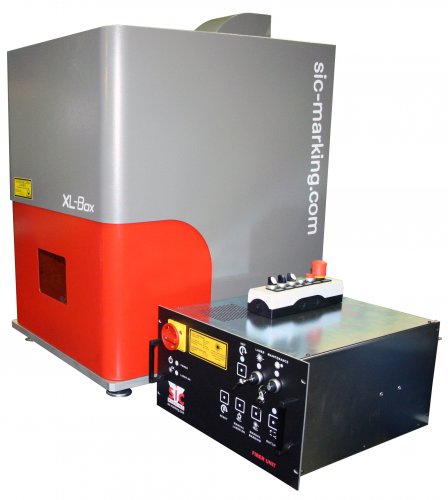

SIC Marking launches a new laser workstation

As its name suggests, this new laser marker is positioned as the flagship of the range with features and dimensions of upper class.

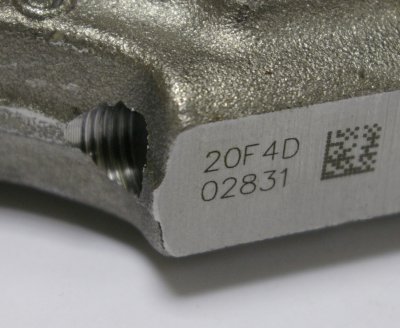

XL Box has been designed to increase productivity at the workstation dedicated to marking and traceability of components . It is equipped with a fiber laser source doped with Ytterbium which allows light or deep markings of alphanumeric codes- barcode and 2D Data Matrix codes , on all metals and some plastics. Results are high-contrast markings produced in some hundredth of a second that can be human-readable or verified by a camera.
XL Box operates thru a laptop (connected via USB port), with SIC LASER PC software that runs in a Windows environment. The software , which is included with the package, offers multiple solutions to configure marking, while maintaining ergonomics and easy- to- use interface.

XL Box enables users to work comfortably for loading / unloading parts. It has significantly larger internal dimensions, with a 550 x 550 mm (21.65” x 21.65”) work area, while maintaining a compact external size with only 653 mm (25.708”) wide.

Large size parts can be marked (up to 370 mm / 14.56” high) with a T-slot table with threaded holes for facilitating fixtures for parts support .

To be more effective, XL Box is equipped with a secured door (pneumatically powered) that closes automatically when marking cycle is launched and opens by itself at the end of cycle. The settings of the Z axis are done intuitively thanks to its 235 mm (9.25”) motorized axis system. With the additional help of two red pointers, focusing on the piece is simple.

The laser is safe for the operator in accordance with Class 1 EN 60825-1.
XL-Box is a versatile laser marking system with many options (rotary D axis, Z axis operated by software, swing plate ...). For further information, www.sic-marking.com Air Max 90 Ultra Moire
