Is your meat spoiled?

MIT chemists have developed an inexpensive, portable sensor that can detect gases emitted by rotting meat. This handy product will give consumers the capability to check if the meat in their grocery store or refrigerator is safe to eat.

The sensor could also be integrated in smart packaging that would offer much more accurate safety information than the expiration date on the package, according to Timothy Swager, the John D. MacArthur Professor of Chemistry at MIT.

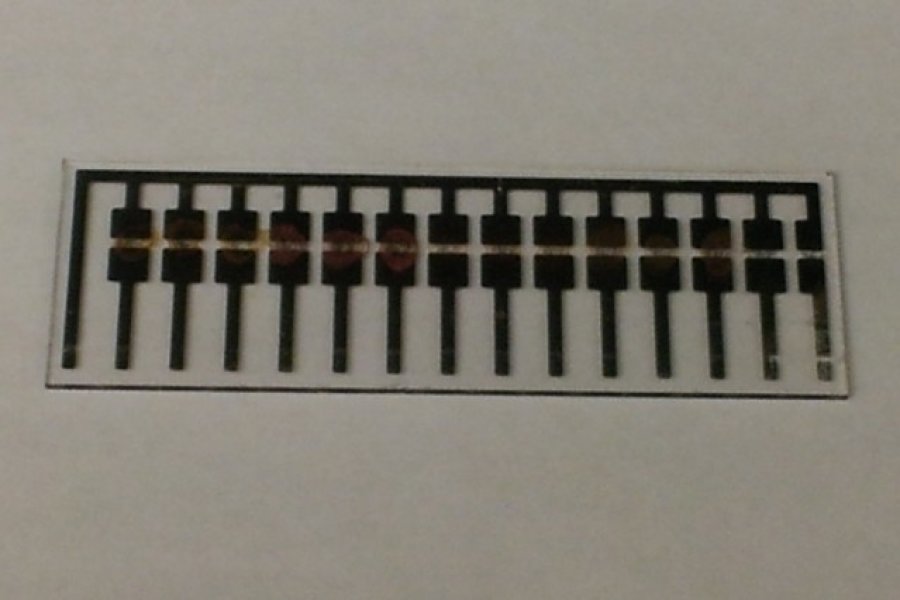

This MIT device, based on modified carbon nanotubes, can detect amines produced by decaying meat (Photo: MIT)

Besides contributing to food safety, knowing when food is safe or not also cuts down on food waste. “People are constantly throwing things out that probably aren’t bad,” said Mr Swager, who is the senior author of a paper describing the new sensor in the journal Angewandte Chemie.

Consisting of chemically modified carbon nanotubes, the sensor is similar to other carbon nanotube devices that Mr Swager’s lab has developed in recent years, including one that detects the ripeness of fruit. All of these devices work on the same principle: Carbon nanotubes can be chemically modified so that their ability to carry electric current changes in the presence of a particular gas.

In this case, the researchers modified the carbon nanotubes with metal-containing compounds called metalloporphyrins, which contain a central metal atom bound to several nitrogen-containing rings. Hemoglobin, which carries oxygen in the blood, is a metalloporphyrin with iron as the central atom.

For this sensor, the researchers used a metalloporphyrin with cobalt at its center. Metalloporphyrins are very good at binding to nitrogen-containing compounds called amines. Of particular interest to the researchers were the so-called biogenic amines, such as putrescine and cadaverine, which are produced by decaying meat.

When the cobalt-containing porphyrin binds to any of these amines, it increases the electrical resistance of the carbon nanotube, which can be easily measured.

“We use these porphyrins to fabricate a very simple device where we apply a potential across the device and then monitor the current. When the device encounters amines, which are markers of decaying meat, the current of the device will become lower,” said graduate student Sophie Liu, who is the paper’s lead author.

In this study, the researchers tested the sensor on four types of meat: pork, chicken, cod, and salmon. They found that when refrigerated, all four types stayed fresh over four days. Left unrefrigerated, the samples all decayed, but at varying rates.

There are other sensors that can detect the signs of decaying meat, but they are usually large and expensive instruments that require expertise to operate. “The advantage we have is these are the cheapest, smallest, easiest-to-manufacture sensors,” Mr Swager added.

The new device also requires very little power and could be incorporated into a wireless platform Mr Swager’s lab recently developed that allows a regular smartphone to read output from carbon nanotube sensors such as this one.

Working with Timothy Swager and Sophie Liu are former lab technician Alexander Petty and postdoc Graham Sazama. The researchers have filed for a patent on the technology and hope to license it for commercial development.

---

Reference

Massachusetts Institute of Technology. “New sensor detects spoiled meat.” www.sciencedaily.com/releases/2015/04/150415125825.htm.
